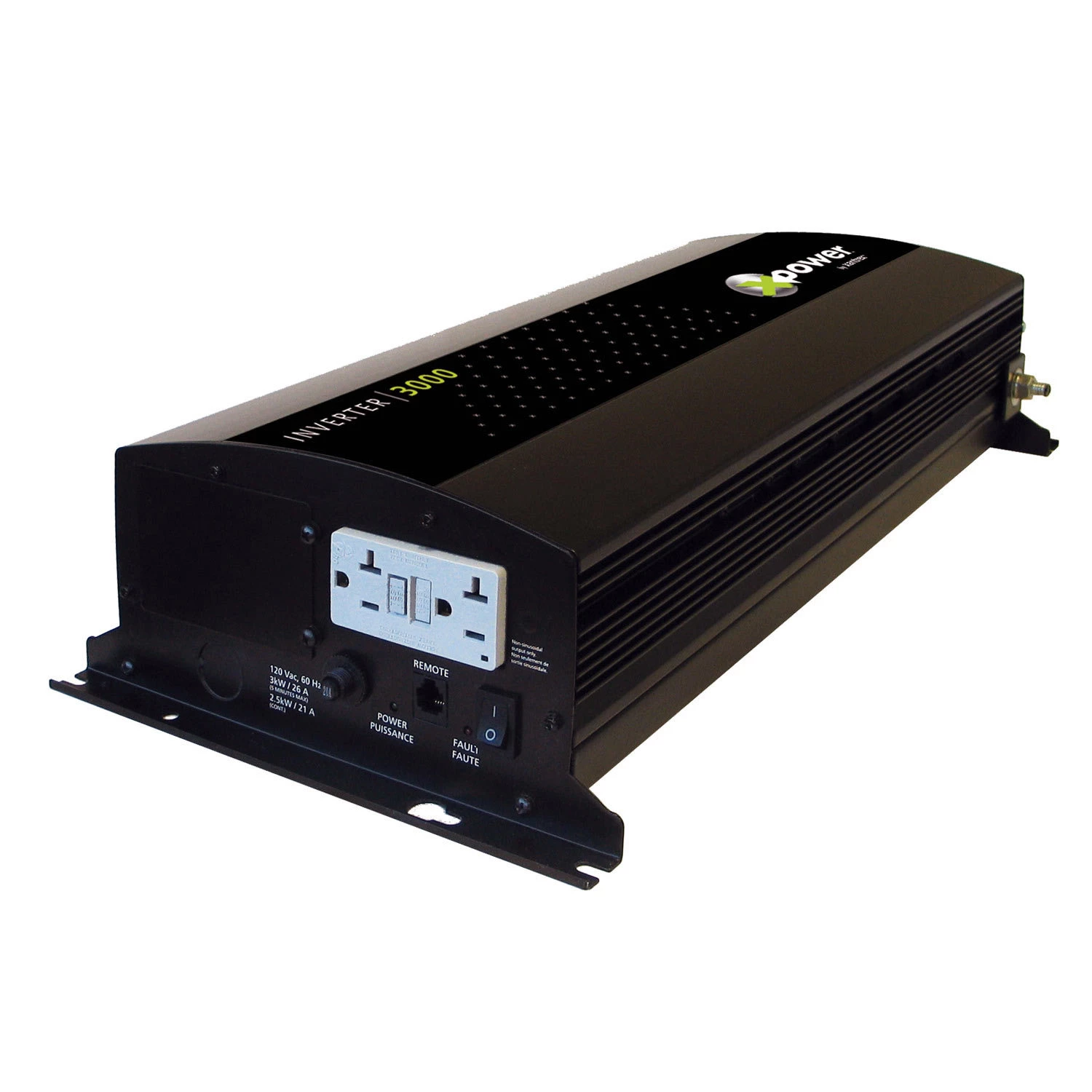

XANTREX Marine Inverters XPower™ 3000 Inverter

Power up your AC household appliances on your boat.

The XPower™ 3000 inverter provides AC power onboard trucks, RVs and boats. Featuring high surge capability, it is ideal for powering multiple loads such as appliances, power tools and other onboard electronics at the same time. Connects easily to 12 volt batteries to provide AC power for a variety of medium to heavy duty applications. The powerful 3000-watt model has two GFCI oulets for multiple loads and an easy-to-read digital display for instant system information.

Key Features

• Portable power for AC products
• Two GFCI AC receptacles for connecting multiple loads
• High surge capacity for products that require more power to start
• High efficiency—converts virtually all the battery’s available power to AC
• Mounting brackets for convenient installation
• Heavy duty stud connectors
• Remote on/off switch included

Specifications

• AC Output Waveform: Modified sine wave
• AC Output Type: Two GFCI outlets with 20A fuses
• AC Output Frequency: 60Hz
• Inverter Efficiency: 90%
• DC Input Type: Heavy duty stud connectors
• DC Input Voltage Range: 10.5-15.5V DC
• DC Input Current: Max. continuous output-260A; Five-minute rating—310A
• No-Load Current Draw: <0.6A
• Continuous Capacity: 2500W (21A)
• Surge Capacity: 5000W
• Approvals: Certified to CSA standard C22.2 No. 107.1-01 and UL 458.
• Safety Features: Low voltage alarm (11.0 VDC), low voltage cutout (10.5 VDC), overload and over temperature shutdown, over voltage protection (15.0 VDC)
• Dimensions: 9 1/2″W x 4 5/16″H x 18 1/2″L
• Remote Available: Remote on/off switch included
• Warranty: One year

What’s in the box

• XPower Inverter 3000
• Owner’s guide,
• Remote on/off switch with 20′ cable,
• Rubber boots for DC terminals,
• Nuts and washers, and
• Strain relief clamp for AC input cables

Owner’s Guide
